| Instrument |

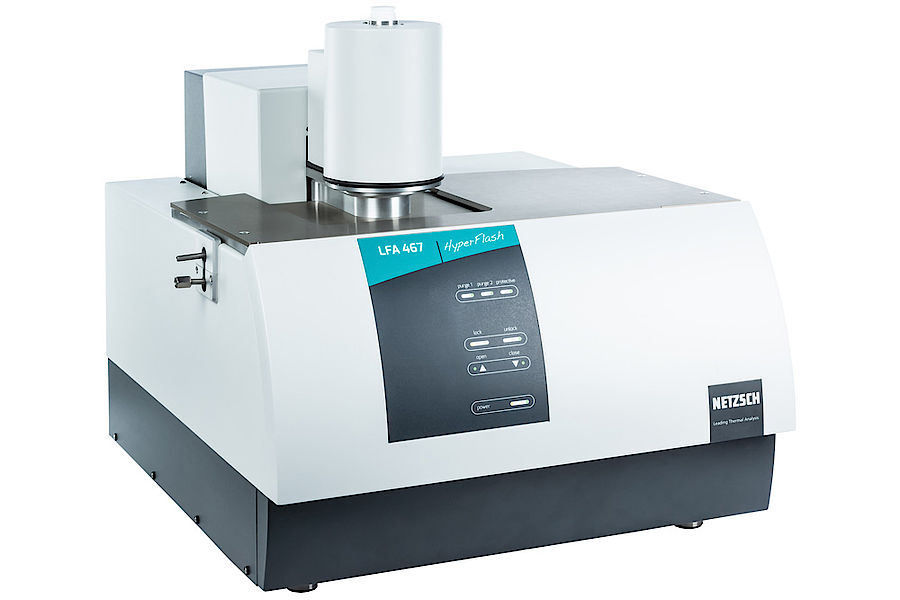

Light Flash Apparatus |
| Type |
LFA 467 HyperFlash |
| Manufacturer |
Netzsch |
Technical parameters
|
Temperature range: room temperature~500 oC. Data acquisition rate: up to 2 MHz. Measuring range: Thermal diffusivity: 0.01~2000 mm2/s, Thermal conductivity: <0.1~2000 W/(m·K). Sample dimensions: 9~25.4 mm diameter, 0.01~6 mm thickness. |
| Major functions |
Measure the thermal diffusivity and thermal conductivity of materials.
|
If you want to use the instrument for chacterazation, please contact Jiajia Zhang (15110440028@fudan.edu.cn) or Mengxiong Li (15110440003@fudan.edu.cn) in advance, thanks.
